Audeze

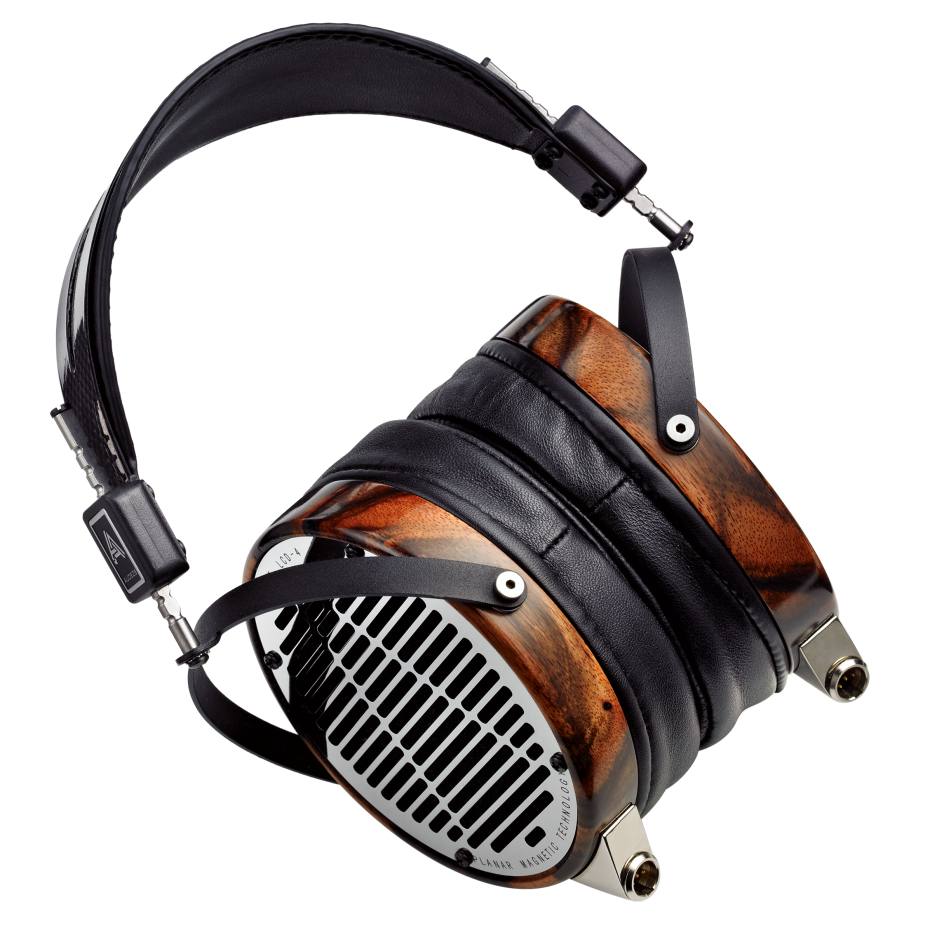

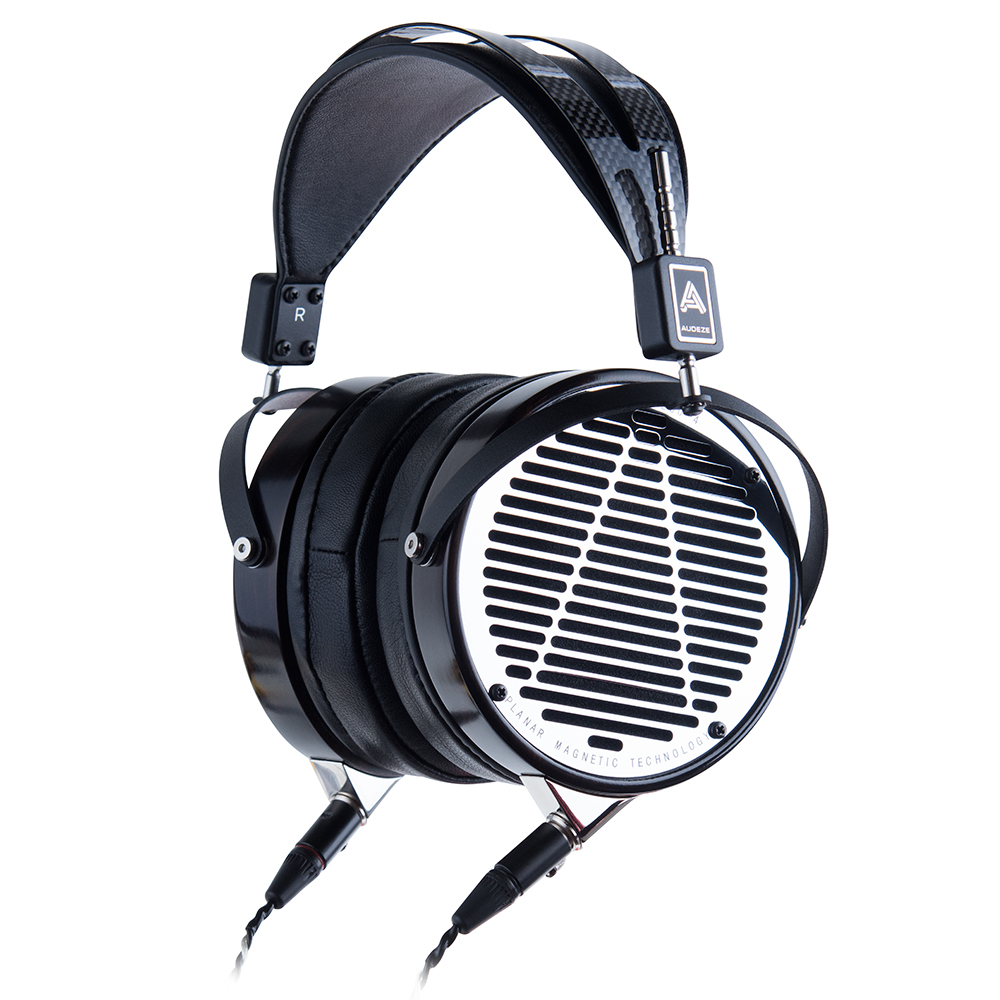

LCD-4
Exclusive LCD-4 planar magnetic technology
The LCD-4 represents 40 years of advancements in planar magnetic technology and our own research and development from 2009 onward when we debuted our first product. Our new flagship headphone features game-changing technology, like its first-of-the-kind nano-scale diaphragm with Double Fluxor™ Magnet Arrays that nearly double the driving power.
TECHNICAL SPECIFICATIONS
Style
Over-ear, open-back
Transducer Type
Planar magnetic
Magnetic Structure
Double Fluxor™ magnet array
Phase management
FAZOR
Magnet type
Neodymium N50
Diaphragm type
Nano-scale Uniforce™
Transducer size
106 mm
Maximum power handling
15W
Maximum SPL
>130dB
Frequency response
5Hz – 50kHz
THD
<0.1% @ 100dB
Impedance
200 ohms
Sensitivity
97 dB/1mW (at Drum Reference Point)
Voltage sensitivity
95 dB/1V
Minimum power requirement
>100mW
Recommended power
level1 - 4W
For more information visit the manufacturer's website by following the link here - LCD-4
